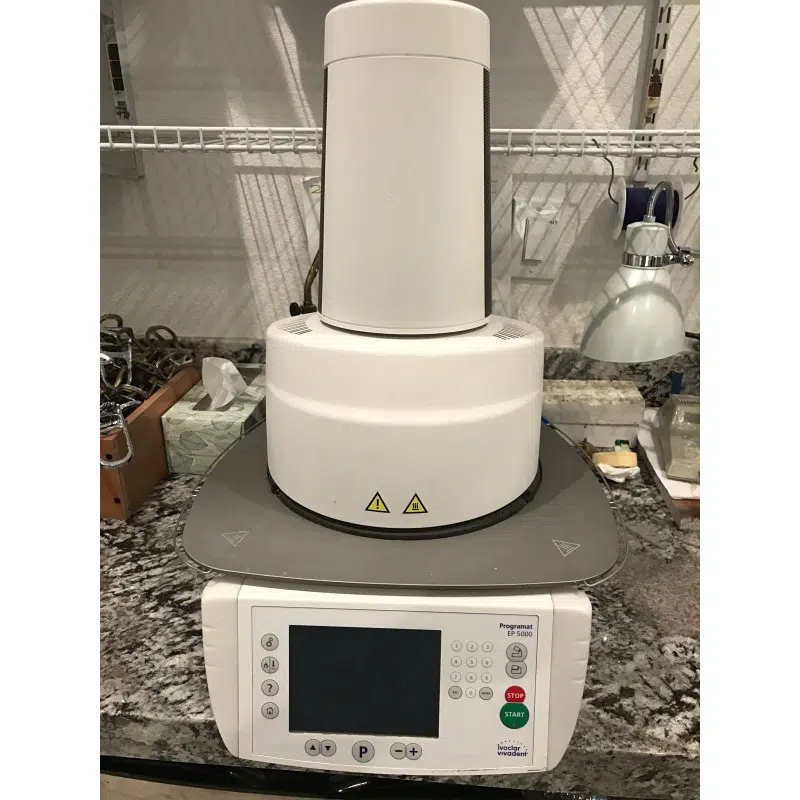

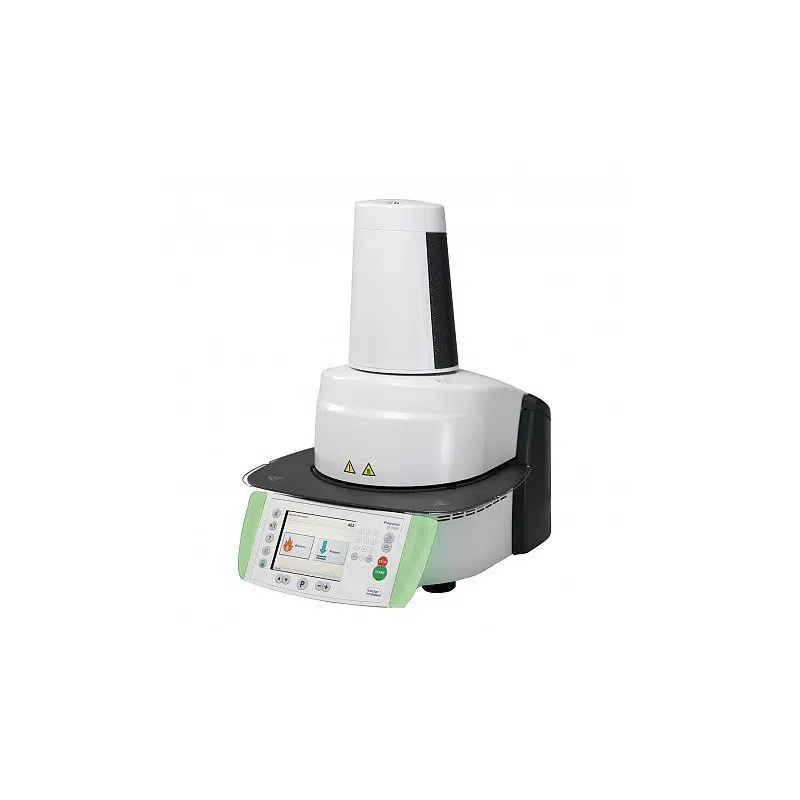

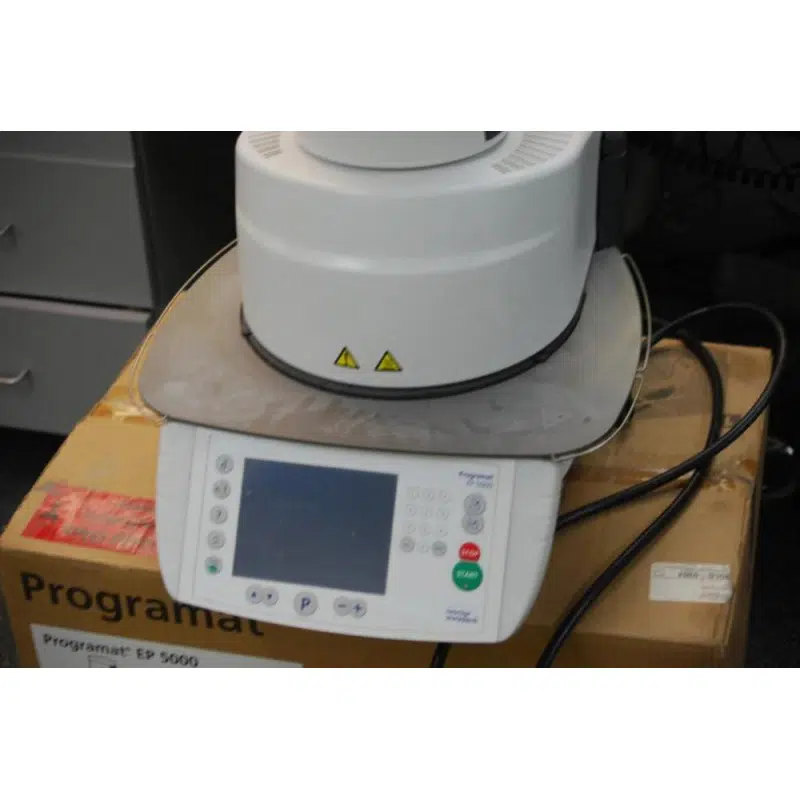

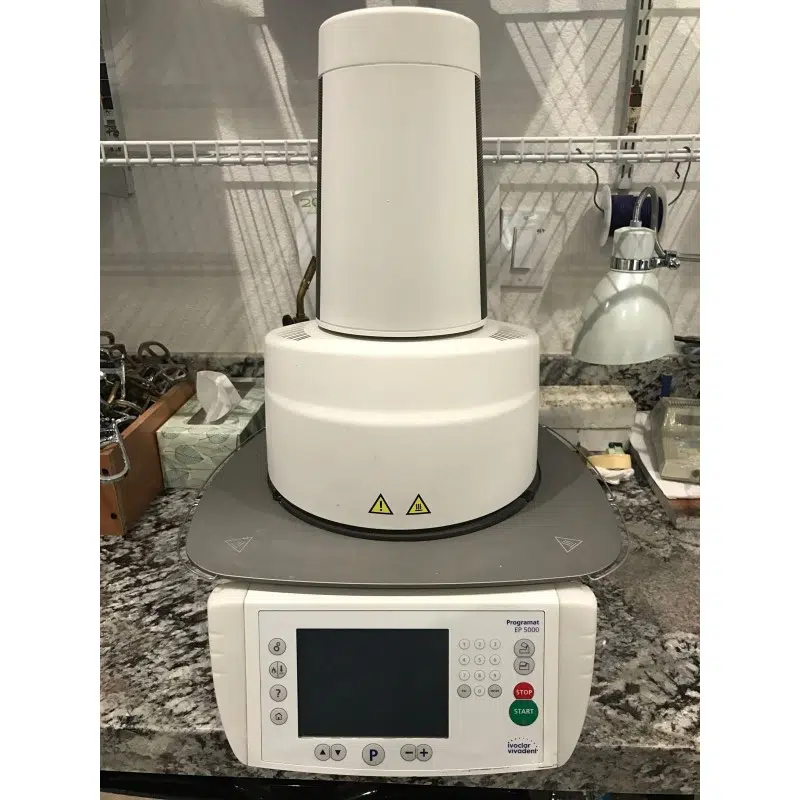

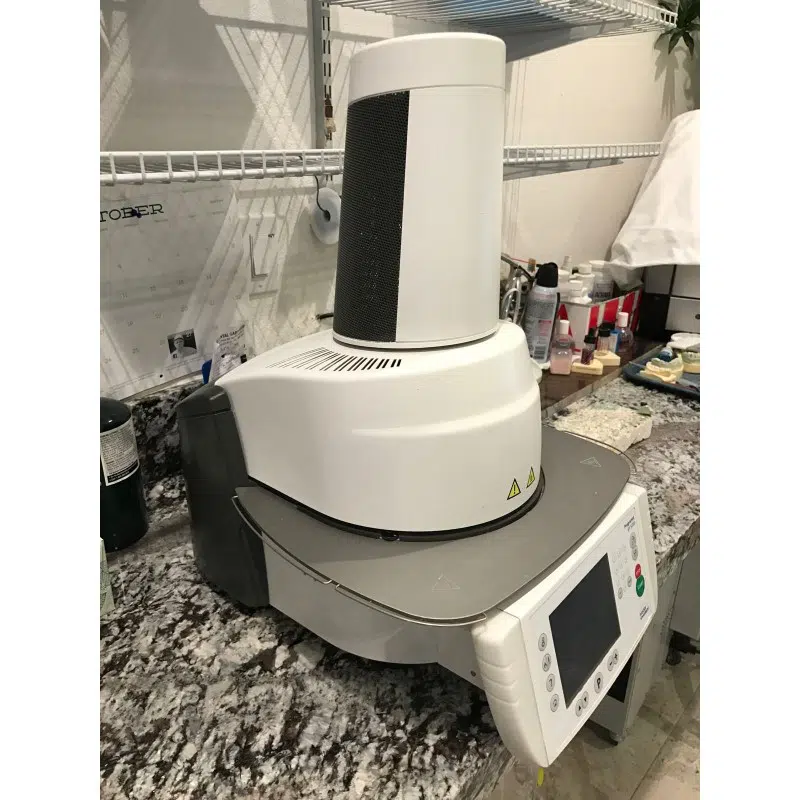

Programat EP 5000 G2 is a press furnace setting a new standard in the field of press and ceramic furnaces with the first press furnace that offers a Crack Detection System with function identifies cracks in the investment ring in time and aborts the press procedure.
Technical Data:
– Voltage: 200–240 V / 50–60 Hz 110–120 V / 50–60 Hz
– Dimensions (closed): W = 305/400 mm (with cooling tray) x D 470 mm x H 565 mm
– Firing chamber: Diameter = 80 mm / H = 48 mm
– Max. firing temperature: 1200 °C
Colours:
Standard colour: white
Special colours: red, green, blue
Advantages:
– Integrated programs for IPS e.max Press Multi ingots

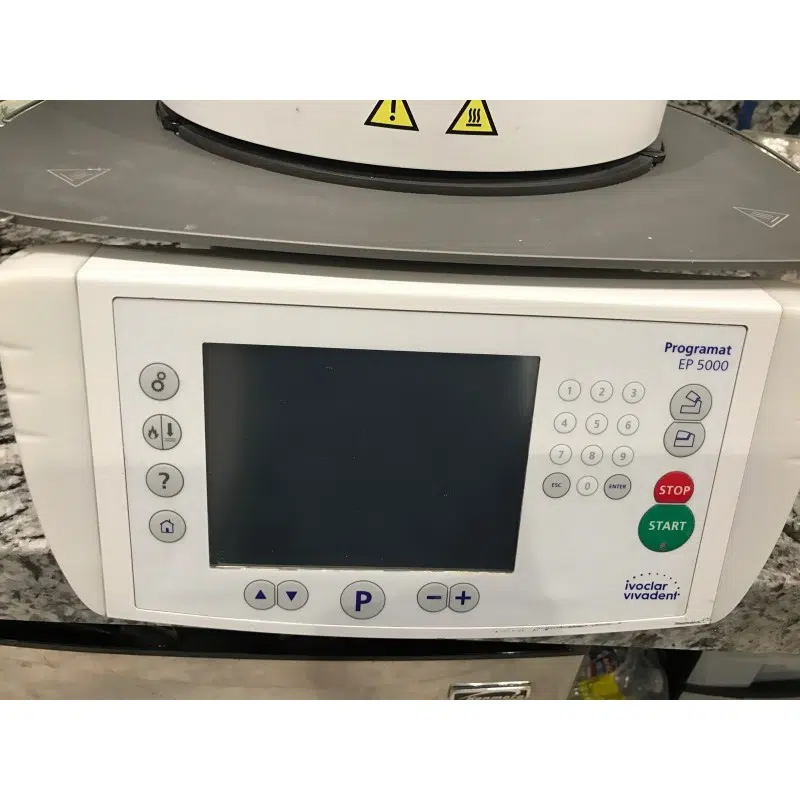

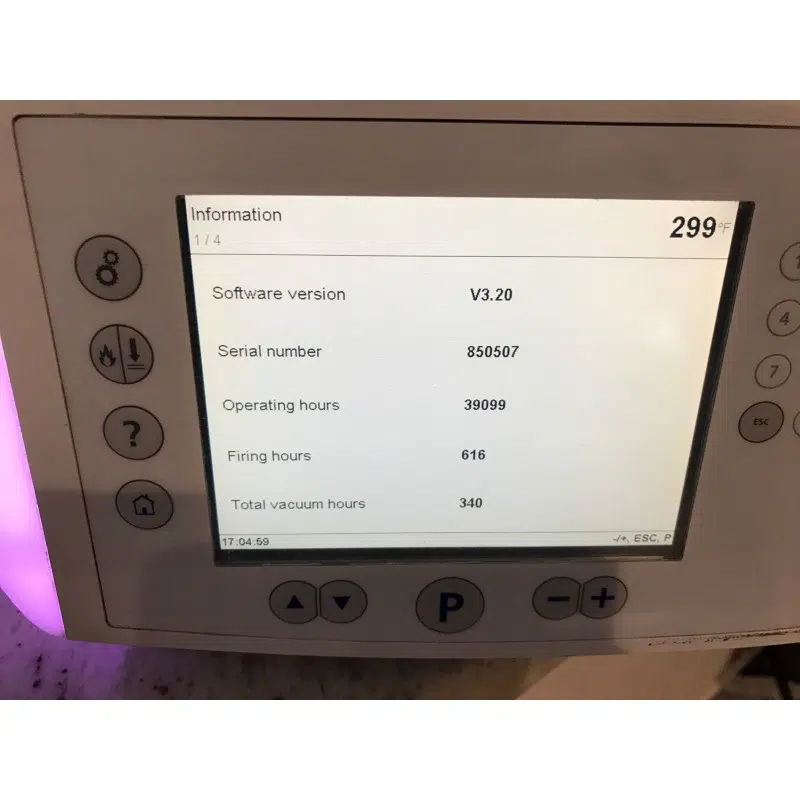

– Modern operating panel with large, clearly arranged high-resolution colour touch display permits easy, intuitive operation
– Intelligent press function permits up to 45% faster press cycles
– CDS – Crack Detection System: Immediately interrupts the press process in case of cracks developing in the investment ring
– Homogeneous heat irradiation thanks to the QTK muffle technology
– Integrated Power Saving Technology helps to save money and to protect the environment
– Electronically controlled press drive permits beautiful press results and does not require a compressed air connection
– OSD – operating status indicator informs users about the current status (heating, cooling, error message, etc.) of the furnace
– Easy, extremely accurate and automatic temperature calibration (ATK2) in two temperature ranges
– USB interfaces for software updates or printer, PC or memory sticks
– TSP Thermo Shock Protection and CSP Cooling Shock Protection
Include :
Programat EP 5000/G2 200–240 V / 50–60 Hz
Programat EP 5000/G2 1x
Power Cord 1x
Vacuum hose 1x
Cooling tray “L“ 1x
Programat Firing Tray Kit 1x
Automatic Temperature Checking Set ATK 2 (Test Set) 1x
Cooling grid 1x
USB download cable 1x
USB stick Programat 1x
PrograBase 2 Software 1x
Service Passport Equipment 1x
Operating Instructions 1x
Roz Clara –
Programat EP 5000 G2 is a press furnace setting a new standard in the field of press and ceramic furnaces with the first press furnace that offers a Crack Detection System with function identifies cracks in the investment ring in time and aborts the press procedure.
