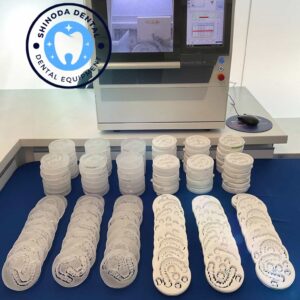

Planmeca PlanMill 50 S 5-axis milling dental application

The Planmeca PlanMill 50 S is a top-quality 5-axis dental milling machine. It is made for precise creation of many types of restorations. Engineered for efficiency, accuracy, and versatility, this milling unit delivers superior results for dental labs and clinics, optimizing workflow and ensuring top-quality prosthetics.

The 5-axis Planmeca PlanMill® 50 S unit is a powerful tool for wet and dry milling of discs and blocks. The powerful milling unit is made for dental labs. It has a high-speed spindle and an automatic changer for 12 tools.

The Planmeca PlanMill® 50 S is a versatile dental milling machine. It can mill discs, blocks, and prefabricated titanium or cobalt chrome abutments. The unit’s easy-to-use CAM software supports open STL files.

Key Features & Benefits:

• ✅ Advanced 5-Axis Milling – The simultaneous 5-axis system enables precise milling of complex restorations, ensuring detailed anatomy and perfect occlusion.
• ✅ Versatile Material Compatibility – Supports a broad range of materials, including zirconia, glass ceramics, composites, PMMA, and wax, giving dental professionals flexibility in restoration choices.
• ✅ Fast and Efficient Milling – High spindle speed and optimized milling strategies significantly reduce fabrication time while maintaining exceptional quality.
• ✅ Wet and Dry Milling Capabilities – This design can handle both wet and dry milling. It increases versatility and allows for more materials to be used.
• ✅ Automatic Tool Changer – Equipped with an intelligent tool management system that selects the right tools for each job, increasing efficiency and reducing manual interventions.
• ✅ Easy CAD/CAM Integration – Works smoothly with Planmeca’s CAD/CAM system. This ensures a simple digital workflow from design to milling.
• ✅ Easy-to-Use Interface – A modern touchscreen makes it simple to operate the machine. You can manage milling tasks with little training.

The Planmeca PlanMill® 50 S is a versatile, 5-axis unit for wet and dry milling of discs and blocks. This strong mill has a high-speed spindle and an automatic changer for 12 tools. It can mill many materials, such as Zirconia, PMMA, and wax.

The designers built the Planmeca PlanMill 50 S on an open platform. This allows for easy integration. It offers high productivity and provides accurate and beautiful restorations.

Bold, flexible, and powerful

Dentists can take a significant step by investing in a full CAD/CAM system. This allows them to offer same-day dentistry. Patients will no longer deal with messy impressions, frustrating temporaries, or long waits for restorations.

Patients will appreciate the convenience and clinicians will enjoy the ability to do more in-house. Clinicians can also benefit from a more efficient digital workflow. The Planmeca PlanMill 50 S milling unit and Planmeca PlanCAD Premium software can help increase production.

The Planmeca PlanMill 50 S unit can do both wet and dry milling. It can mill pucks and blocks from many materials, including lithium disilicate, glass ceramics, zirconia, PMMA, and wax.

The 5-axis milling unit provides highly accurate and aesthetic restorations. The design also includes a high-speed spindle and an automatic changer for 12 tools.

Planmeca PlanCAD Premium is strong software that works on many platforms. It can create various dental applications, including crowns, bridge designs, wax-ups, removable partials, and complete dentures. Clinicians can import, export, and edit various file formats without any restrictions or complicated workarounds.

Its versatility allows users to provide their patients with a broad array of services. The software’s adaptability and modularity allow clinicians to add more advanced tools and capabilities as their practice grows.

Why Choose the Planmeca PlanMill® 50 S?

• Provides superior precision and smooth milling performance
• Supports a wide range of dental restoration materials
• Speeds up production without compromising accuracy
• Ideal for high-volume dental labs and advanced clinics
• Ensures a seamless and efficient CAD/CAM workflow

Upgrade your dental lab’s milling technology with the Planmeca PlanMill® 50 S and experience industry-leading accuracy, efficiency, and reliability.

Technical specification

• Dimensions when closed (W x H x D), in mm 520 x 590 x 720
• Weight, in kg approx. 85 kg
• Actuator type stepper motors
• Control IMC40
• Protective cover Pivoting cover (to be raised)
• Guides Precision steel guides in X, Y, Z axes
• Tool Changer 10 tool positions, automated
• Ranges of motion X axis: 150 mm / lead screw 5 mm
• Y axis: 115 mm / lead screw 5 mm
• Z axis: 90 mm / lead screw 5 mm
• A axis: 360 degrees
• B axis: 110 degrees
• Necessary air pressure 6–9 bar (with constant application)
• Necessary air volume 60 L/min
• Cooling lubricant tank 2.5 L
• Voltage / frequency / power input 230 V / 50 Hz / 1.5 A or 115 V / 60 Hz / 3 A
• Nominal output 750 W
• Noise level (milling in plastic, with closed cover) < 70 dB(A)
• Spindle Jäger Spindle 60 000 rpm
• Maximum setup height 2000 m above AMSL
• Fuse (micro fuse 5×20 mm) T10AH / 250V UL/CSA

PlanMill 50 Suction unit

• Capacity 260m³/hr
• Size Height 750mm x Depth 460mm x Width 440mm
• Weight 30kg
• Exhauster Centrifugal Blower
• Electrical supply 115-230v 1ph 50/60Hz
• FLC 12.5A
• Noise Level Below 75dB (A)
• Filters Pre filter Efficiency F8 95% @ 0.9μ

Environmental Operating Range

• Temperature +5°C to +40°C
• Humidity Max 80 % RH up to 31°C to Max 50% RH at 40°C
• Altitude Below 2000m
• Pollution Degree 2
